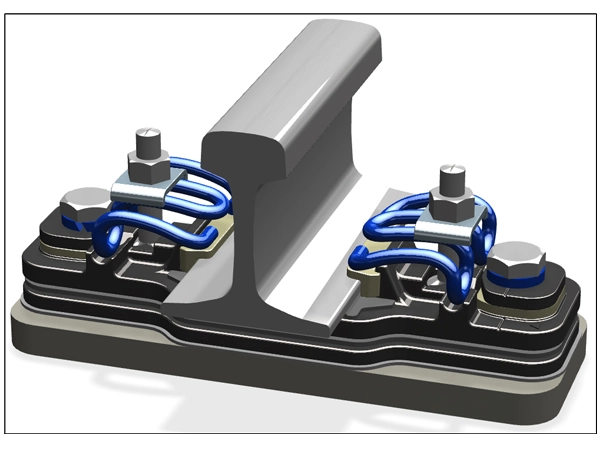

Upper self-locking (Third generation) double-layer non-linear vibration damping fasteners adopt elastic snap type upper locking structure. The overall technology is mature and reliable, and its vibration damping effect is up to 8dB or more, it is a typical representative of medium vibration-damping fasteners.
1. Adopting Patented Technology (Invention Patent No.: CN 201610597322.8), so the insulated self-locking sleeve could realize sealing locking and double-layer separable structure.
2. The pre-tensioning force of fastener system is adjustable on site.
3. Compared with lower self-locking double-layer non-linear vibration damping fastener and bonded fastener, the upper iron pad of fastener system is fixed by anchoring system, so that the fastener system has greater resistance to uplift, which is safer and more reliable.
4. The fastener system optimizes the intrinsic frequency of upper iron plate and node stiffness of fastener system, which effectively slows down the development of rail wave abrasion.
5. The fastener system adopts non-linear elastic pad structure, which has the characteristics of low load low stiffness, high load high stiffness, overload protection function and good safety.
6. The self-locking mechanism of fastener system is arranged on the upper part of fastener and visible, which is convenient for on-site maintenance. The replacement of middle elastic pad and insulating self-locking sleeve can be quickly completed by using skylight point on site, and does not affect normal operation of the line.
7. The fastener system is equipped with a variety of gauge adjustment methods, such as gauge block, spacing slot and eccentric design of spring bar holder etc. The insulation coupling plate and height adjusting plate are arranged under the plate, which can realize plus or minus rail height adjustment.
8. Multiple insulation functions are realized by rubber elastic pad, insulating gauge block, nylon sleeve, insulating self-locking sleeve and insulating coupling pad.
9. The fastener system has good adaptability in line, and can be matched with 50kg/m rail, 60kg/m rail and other types of rail, also can be matched with E-type spring bar, drive spring bar and fast spring bar and other types of spring bar. Its interface type, installation size and stiffness indicators can be designed according to requirements, and it can be installed in a variety of different structures of sleeper or track bed, also suitable for switches, joints and other special sections.
Project | Technical Index | |||
Static Stiffness | Ordinary subway line | Municipal railroad | ||
(12-18) kN/mm | (17-23 ) kN/mm | |||
Dynamic Static Ratio | Not more than 1.4 | |||
Fatigue Performance | Single set of fasteners vertical loading 8~40kN, lateral loading 4~20kN, after 3 million times of fatigue test, the rate of change of static stiffness is no more than 10%, Gauge expansion of no more than 6mm, no damage to the parts and components | |||
Wet Working Resistance | >20 kO | |||
Installation height | (56±1) mm (standard type) | |||
Measurement of mounting height rail adjustment | Gauge | No less than common fastener | ||
Rail height | e-type sliding bar fastener: (0~30) mm, w-type sliding bar fastener: (0~40) mm | |||
Upper iron mat and lower iron mat Adjustment range of preload force | (The preload force of standard fasteners is more than 10kN, and the preload of the middle elastic pad is more than 1mm) | |||
Interface with rail | Can be matched with 50kg rail, 60kg rail and many kinds of elastic bars. | |||
Slope of rail bottom | The slope of rail bottom can be designed according to the requirements | |||
Interface with sleeper | Suitable for a variety of sleepers, and can be adjusted according to requirements | |||
