Rubber Track Bed Damping Pad

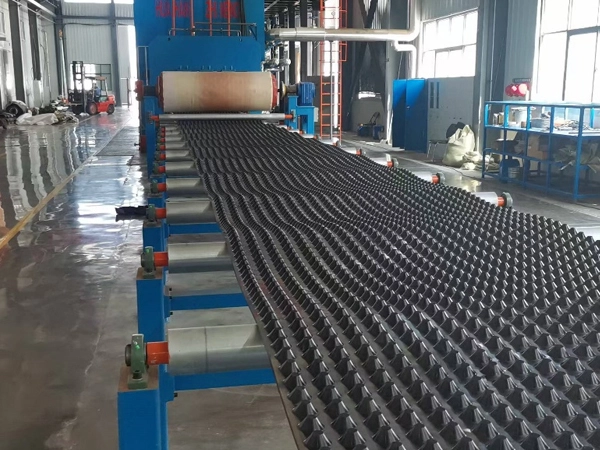

The railway rubber pad is also called rubber track bed damping pads, railway track pads, and rubber rail pads. Installed between the steel rail and concrete sleepers, it plays a key role in the rail fastening system. The product structure of the railway rubber pad is a long cushion with a nail post structure on one side, and its flat plate part is composed of fabric-reinforced rubber.


The rubber track bed damping pad plays the role of vibration isolation and belongs to the continuous support structure. Its typical laying and installation method is that the rubber rail pad uses the whole track bed board as a vibration unit. It has the characteristics of large mass and small vibration amplitude, good vibration isolation performance, excellent fatigue resistance and easy installation and usage.

Rubber Track Bed Damping Pad

Features of Longhua Railway Rubber Pad

The Longhua Railway Rubber Pad is designed with several key characteristics that make it an essential component of railway track structures:

·Superior Vibration Isolation:

It offers excellent vibration isolation performance with a large mass and small vibration amplitude, effectively reducing track vibrations caused by passing trains.

·Exceptional Durability:

The rubber rail pad is resistant to deformation or breakage across a wide range of temperatures, thanks to its outstanding elasticity, shock absorption, abrasion resistance, and thermal stability.

·Long Service Life and Low Maintenance:

With its long-lasting performance, the rubber pad significantly reduces maintenance and replacement costs, providing substantial savings over time.

·Versatile Compatibility:

Available in a wide range of models and specifications, the railway rubber pad can be tailored to meet specific technical requirements. It is compatible with various types of sleepers, as well as synthetic sleepers, wooden sleepers, and concrete sleepers.

·Other Key Advantages:

The rubber rail pad also offers excellent shock resistance, thermal insulation, wear resistance, and high strength, and is easy to install, ensuring reliable performance and minimal downtime.

Rubber Track Bed Damping Pad

Indicators of Track Bed Damping Pad

Project

Unit

Rated Value

Remarks

Service Life

Year

Not less than 60

-

Operating Ambient Temperature

-30℃~+70℃

-

Thickness

mm

30±1

No more than 20% change in thickness during service life

Static Fundamental Modulus

N/mm3

0.016~0.022

1.8kN~9.0kN Loading Load:1.8kN~9.0kN

Dynamic and Static Stiffness Ratio

-

≤1.2

Dynamic and static fundamental modulus ratio

Fatigue Performance

%

3% Static fundamental modulus, thickness change no more than 3%

Loading Load: 1.8kN~9.0kN;

Loading Frequency: 4±1Hz; 15 million times

Maximum vertical dynamic displacement of the roadbed when the train passes by

mm

≤3

-


Rubber Track Bed Damping Pad

Applications of Railway Rubber Pad

The rail rubber pad is mainly used in urban rail transit subway projects, laid between ballast beds and subgrade, and can be used as elastic support under gravel ballast beds, integral ballast beds, and prefabricated ballast beds of subways, light rails, and urban railways.


As one of the leading railway rubber pad manufacturers in the industry, we provide high-quality railway rubber pads to meet your specific requirements. In addition to rubber rail pads, we also supply synthetic railway sleepers, as well as rail fixtures and fastenings. Contact us today to discover our superior products and effective, reliable vibration-damping and noise-reduction solutions for rail transportation!

Rubber Track Bed Damping Pad

Why Choose Longhua Group for Railway Rubber Pads

Longhua Group is a trusted industry leader with cutting-edge expertise in vibration damping, noise reduction, and lightweight technologies. Through our wholly-owned subsidiary, Luoyang Kebos New Material Technology Co., Ltd., we specialize in the research, development, and application of advanced materials such as resin-based composites, structural foams, and rubber and plastic materials. Kebos holds complete intellectual property rights in areas like product structure and formulation design, molding processes, simulation analysis, testing, and post-processing fine control. With 142 national patents, including 42 invention patents, and nearly 100 proprietary technologies, we provide strong protection for our core technologies. Our R&D team has pioneered innovations like dual-layer damping fasteners, ensuring the highest-quality railway damping pads, synthetic railway sleepers, and rail fixtures. We offer solutions that enhance the performance, safety, and sustainability of railway systems, backed by our comprehensive engineering capabilities. Looking for reliable railway rubber pad manufacturers? Choose Longhua Group for reliable, high-performance railway damping solutions tailored to your needs.
