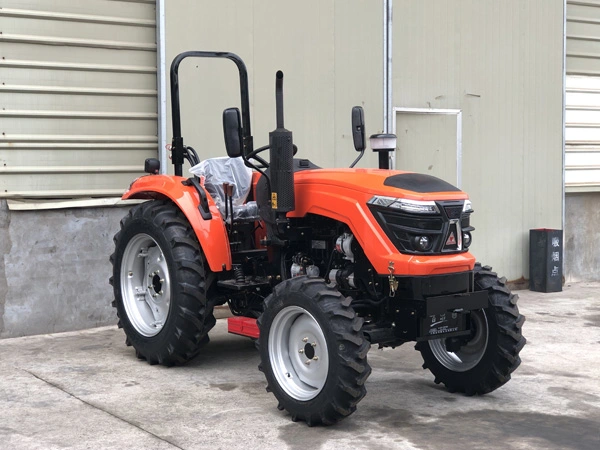

Model: FUGESEN-MF504/604
Rated Power (kW)36.8
Max Ballast Weight F/R (kg)160/180
Min. Tuning Radius(m)3.4±0.3
Related Speed(r/min): 2500
Max Traction (kn) 16
| FUGESEN-MF504/604 | ||

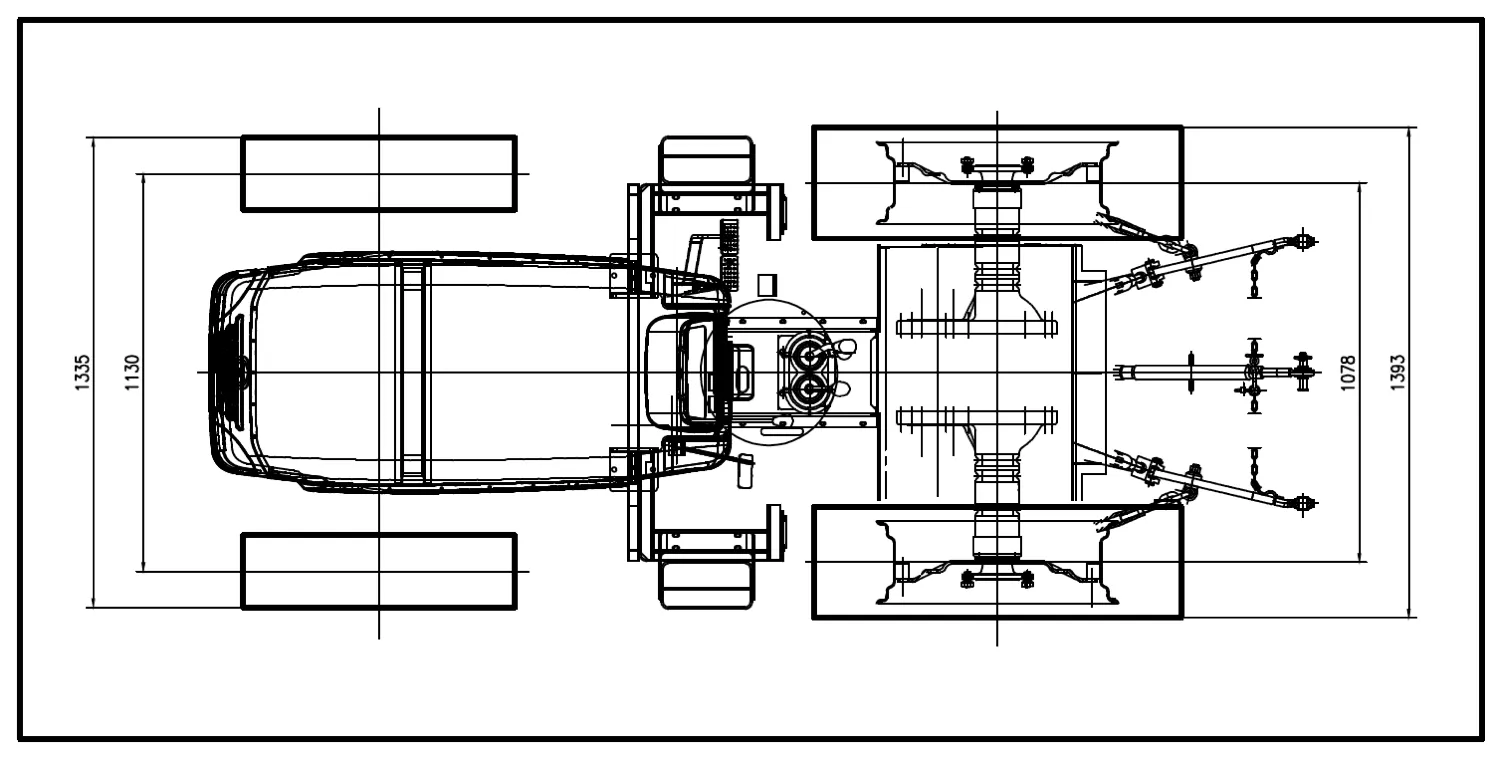

| Overall Dimension (mm) | 3650×1450×2270 | |
| Min. Operating Mass(kg) | 1890 | |
| Max Ballast Weight F/R (kg) | 160/180 | |
| Engine | Type | YUNNEI Power |
| Mode | Straight Row, Four Stroke, Direct Injection, Water Cooling, Naturally Aspirated | |
| Rated Power (kW) | 36.8 | |
| Rated Speed (r/min) | 2500 | |
| Gear Shift. F/R | 12 /3 | |
| Speed Range | F (km/h) | 3.4-39.5 |
| R (km/h) | 4.0-8.1 | |
| Type | F | 7.50-16 |
| R | 11.2-28 | |
| F Wheel Tread(mm) | 1200 | |
| R Wheel Tread(mm) | 980-1150 | |
| Min Clearance(mm) | 320 | |
| Min. Tuning Radius(m) | 3.4±0.3 | |
| PTO TYPE | Post mounted, Semi Independent | |
| PTO Speed(r/min) | 540/760 | |
| PTO Power (kW) | 31.3 | |
| Tillage Depth Control Mode | Floating Control | |
| Max Traction (kn) | 16 | |
National sales champion, sales first, 1.8%.
Engine chassis Self-production.
Large arc streamlined design fashionable, atmospheric.
Cloud / Jiang dynamic country two four-cylinder direct injection technology Save fuel and money Good air tightness Powerful.
Oil bath air filter Good air intake quality Diesel combustion full intake impurities less.
Increase the water tank Large cooling area Cooling effect is good not easy to open the pot.
10" dual-acting clutch, high friction, heavy load work is not easy to slip.
12+4 gear shift, optional shuttle shift, crawl gear.
Strengthened drive train, oblique tooth power output, large carrying capacity, stable and reliable.
Wet disc brakes, end drive, planetary gears, deceleration mechanism, long service life and high operating efficiency.
Transport operation speed, top speed of 30 kilometers per hour, high transfer efficiency.
Front wheel 7.5-16, rear wheel 11.2-28, front 4 after 2 counterweight, optional 8 kinds of dry field wheel and 1 kind of water field wheel.
Cone gear front axle, the highest ground gap 430mm, super-strong errand performance, to meet the needs of mid-till work.
The front axle has wheel pitches of 0.9m, 0.96m, 1m, 1.1m, 1.2m and 1.3m.
Base with vertical double cylinder pressure lifter, lift force is large, easy to repair.
Optional 1 or 2 sets of hydraulic outputs.
Base with dual speed power output, 540/720, 540/1000, 720/1000 supporting a variety of agricultural tools.
Side handling, more convenient and comfortable to operate.
Hanging pedal structure, small pedal force, flat floor, more comfortable ride.
Unique shape, compact and delicate.
Tractors consist of several key components, including the engine, transmission, hydraulic system, power take-off (PTO), three-point hitch, wheels or tracks, steering system, and operator controls. These components work together to provide power, mobility, and functionality to the tractor.
Yes, tractors have versatile applications beyond agriculture. They are also used in construction, landscaping, forestry, transportation, and various industrial operations. Tractors can be equipped with different attachments and implements to perform specific tasks in these industries.
