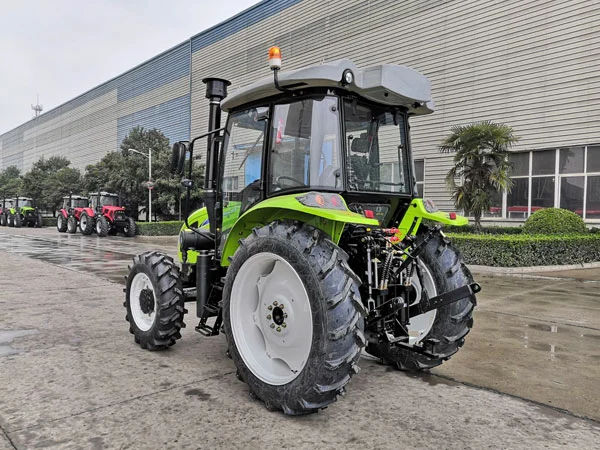

The 70-95HP wheeled tractor is equipped with 4-cylinder diesel engine produced from UK Racado technology. Besides the large torque and the strong power, this agricultural equipment consumes less energy during operation, which is conducive to low carbon emission and environmental protection.
Equipped with the transmission system designed on the basis of European technology, our product can be provided with 12F+4R, 12F+12R or 24F+8R gear. Additionally, the synchronizer for gear shifting is optional. It can provide smooth and safe gear shift to avoid parking during gear shifting.
| FUGESEN-754 | Model | FUGESEN-754 | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H(mm): | 3850*1750*3150 | ||
| Wheel Track(mm) | Front | 1300 | |
| Rear | 1300-1600 | ||
| Wheel Base(mm) | 2010 | ||
| Ground Clearance(mm) | Under Front Axle | ≧710 | |
| Rated Traction Force(N) | 16000 | ||
| Construction Mass(kg) | 3700 | ||
| Min. Turning Radius(m) | 4.2 | ||
| Theoretical Speed (km/h) | Forward | 2.94, 3.60, 4.26, 5.76, 7.06, 8.67,10.25, 13.85,17.87, 21.94, 25.94, 35.06 | |
| Reverse | 6.46, 7.92, 9.37, 12.67 | ||
| Engine Specification | Type | 4-cylinder, Upright inline cylinder, radiator cooling, 4-storke cycle, direct-injection | |
| Rated Power(kW/hp) | 55/75 | ||
| Rated Fuel Consumption (g/kW/h) | ≤220 | ||
| Rated Speed(rpm) | 2300 | ||
| Bore × Stroke(mm) | 102×115 | ||
| Total Displacement(L) | 3.857 | ||
| Drive System | Clutch | Dry Independent type dual Function clutch | |
| Gear Box | 4×(3+1) Sliding gear shift | ||
| Main Drive | One Pair of Spiral Bevel Gears | ||
| Differential | Obturation, four bevel gears | ||
| Differential Lock | Locking pin type | ||
| Final Transmissions | Planetary reduction gear | ||
| Traveling Mechanism | Tire | Front | 9.5-20 |
| Rear | 14.9-28 | ||
| Steering Gear | Hydraulic steering | ||
| Brake | Oil immersed multi-plate disc | ||
| Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point(kn) | 1250 |
| 3-Point Suspension | Category: I | ||
| P.T.O. Shaft | Rotating Speed(rpm) | 540/1000 or 760/1000 | |
| Spline Size | 6-Ø35 Rectangular Spline | ||
The front axle of our 70-95HP wheeled tractor is manufactured according to the technology from Europe. So, it is reliable and durable for use.
Our wheeled tractor with cab employs LUK independently controlled dual clutch. The high reliability makes the operation available during gear shifting, resulting in higher working efficiency.
The hydraulic steering system installed with adjustable.
