4 wheel drive articulated garden tractor

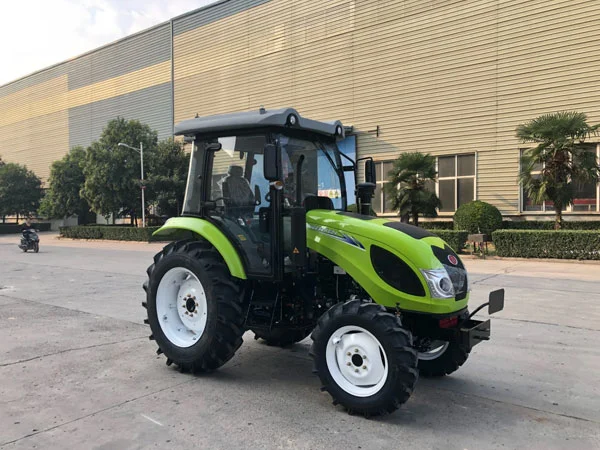

FUGESEN-604 Tractor

Name: FUGESEN-604 Tractor
Brand: Longhua Technology Group (Luoyang) Co., Ltd.

Model: FUGESEN-604

Rated Traction Force(N): 12800

Construction Mass(kg): 2500

Min. Turning Radius(m): 4.2

Rated Fuel Consumption (g/kW/h): ≤220

Contact Us >

Product Features Specifications Safety Considerations & Instructions

FUGESEN-604 Tractor

Specifications of FUGESEN-604 Tractor

FUGESEN-604	Model		FUGESEN-604
	Drive Type		4WD
	Overall Dimensions L×W×H(mm):		385017502650
	Wheel Track(mm)	Front	1300
		Rear	1300-1600
	Wheel Base(mm)		2010
	Ground Clearance(mm)	Under Front Axle	310
	Rated Traction Force(N)		12800
	Construction Mass(kg)		2500
	Min. Turning Radius(m)		4.2
	Theoretical Speed (km/h)	Forward	2.83, 3.47, 4.10, 5.55, 6.8, 8.35,9.88, 13.34,17.22, 21.13, 24.99, 33.77

		Reverse	6.22, 7.63, 9.03, 12.20
Engine Specifications	Type		4-cylinder, Upright inline cylinder, radiator cooling, 4-storke cycle, direct-injection
	Rated Power(kW/hp)		44.1/60
	Rated Fuel Consumption (g/kW/h)		≤220
	Rated Speed(rpm)		2300
	Bore × Stroke(mm)		95×115
	Total Displacement(L)		3.26
Drive System	Clutch		Dry Independent type dual Function clutch
	Gear Box		4×(3+1) Slinding gear shift
	Main Drive		One Pair of Spiral Bevel Gears
	Differential		Obturation, four bevel gears
	Differential Lock		Locking pin type
	Final Transmissions		Planetary reduction gear
Traveling Mechanism	Tire	Front	8.3-20
		Rear	13.6-28
	Steering Gear		Hydraulic steering
	Brake		Oil immersed multi-plate disc
Working Device	Hydraulic System	Lifting Capacity at 610 mm Behind Lift Point(kn)	910
		3-Point Suspension	Category: I
	P.T.O. Shaft	Rotating Speed(rpm)	540/1000 or 760/1000
		Spline Size	6-Ø35 Rectangular Spline

FUGESEN-604 Tractor

Product Features of FUGESEN-604 Tractor

01

Hanging pedal structure, small pedal force, flat floor, more comfortable ride.

02

Engine chassis Self-production.

03

Large arc streamlined design fashionable, atmospheric.

04

Cloud / Jiang dynamic country two four-cylinder direct injection technology Save fuel and money Good air tightness Powerful.

05

Oil bath air filter Good air intake quality Diesel combustion full intake impurities less.

06

Increase the water tank Large cooling area Cooling effect is good not easy to open the pot.

07

10" dual-acting clutch, high friction, heavy load work is not easy to slip.

08

12+4 gear shift, optional shuttle shift, crawl gear.

09

Strengthened drive train, oblique tooth power output, large carrying capacity, stable and reliable.

010

Wet disc brakes, end drive, planetary gears, deceleration mechanism, long service life and high operating efficiency.

011

Transport operation speed, top speed of 30 kilometers per hour, high transfer efficiency.

012

Front wheel 7.5-16, rear wheel 11.2-28, front 4 after 2 counterweight, optional 8 kinds of dry field wheel and 1 kind of water field wheel.

013

Cone gear front axle, the highest ground gap 430mm, super-strong errand performance, to meet the needs of mid-till work.

014

The front axle has wheel pitches of 0.9m, 0.96m, 1m, 1.1m, 1.2m and 1.3m.

015

Base with vertical double cylinder pressure lifter, lift force is large, easy to repair.

016

Optional 1 or 2 sets of hydraulic outputs.

017

Base with dual speed power output, 540/720, 540/1000, 720/1000 supporting a variety of agricultural tools.

018

Side handling, more convenient and comfortable to operate.

FUGESEN-604 Tractor

Safety Considerations & Instructions

Tractor operators should follow safety precautions. This includes wearing appropriate protective gear, such as seat belts, helmets, and safety glasses. Operators should receive proper training, operate within the tractor's load and slope limits, and be cautious of potential hazards in the working environment.

Regular maintenance is crucial for optimal performance and longevity of a tractor. Maintenance tasks include checking fluid levels, inspecting and replacing filters, lubricating moving parts, maintaining tire pressure, and addressing any issues promptly. Following the manufacturer's maintenance schedule and guidelines is essential.

Products

Other 24.4-65HP Wheeled Tractor

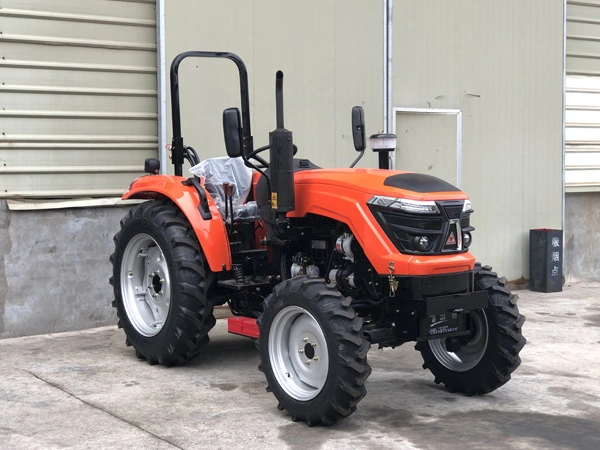

FUGESEN-MF504/604 Tractor
