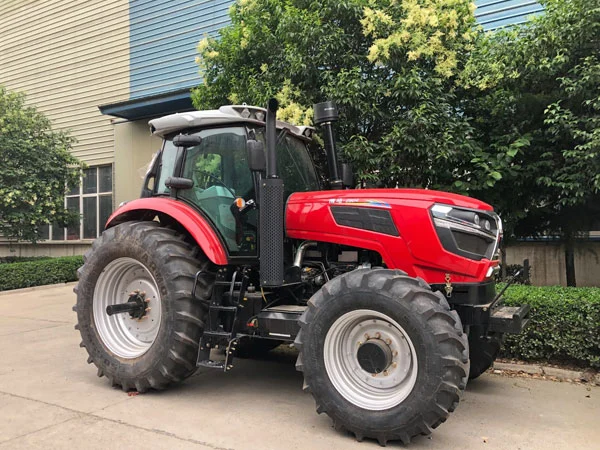

220HP wheeled tractor is offered with 400L large capacity fuel tank, supporting long distance driving. Moreover, the supercharged air/air inter-cooled diesel engine consumes less fuel during operation. You can see an immediately improvement in your working efficiency, and the reduction in your energy usage.
Our eco-friendly tractor has good adaptability by virtue of the adjustable single or double-acting multi-way valve, as well as the 3 or 4-group of hydraulic outputs.
There is an electro-hydraulic control suspension mounted at the rear of the product. So, trailer can be connected to the 160-220HP wheeled tractor rapidly and conveniently.
Specially, this range of product is designed with double rear wheel for vigorous drive. Moreover, the stepless adjustable wheel track makes it available for the farm crops indifferent row spacing.
The fully enclosed cab has wide vision. Equipped with heater, air conditioner, and audio and air dust filtering system.
| Model | FUGESEN-2204 |
| Drive Type | 4WD |
| Overall Dimensions | L×W×H(mm):5260*3030*3500 |
| Wheel Track(mm) Front/Rear | 1522-22521700-2288 CARRARO front axle, rear wheel stepless adjustable |
| Wheelbase(mm) | 2928 |
| Ground Clearance(mm) | 460 |
| Rated Traction Force (KN) | 6.2±0.2(5.0+-0.2) unilateral brake |
| Min. Turning Radius(m) | 6.6 |
| Theoretical Speed (km/h) FR | 2.00~36.69/4.44~14.48 |
| Engine Type | SC9D250G2 (Euro 2) |
| Turbocharging inter-cooled,6-cylinder, 4-storke cycle, direct-injection. Emission Euro2/3 and electronic engine with Bosch high pressure common rail fuel pomp is optional; Made in CHINA | |
| Displacement(L) | 8.82 |
| Rated Power (HP) | 220 |
| Rated Fuel Consumption (g/kw⋅h) with 400L fuel tank | ≤220 |
| Rated Speed(rpm) | 2200 |
| Clutch | Dry Independent type dual Function clutch, 14 inch or 15inch LUK clutch friction materials. |
| Main Drive and Gear Box | FIAT technology, high reliability. 12F+4R gearbox, 4*(3+1) Sliding gear shift |
| Main Drive | One Pair of Spiral Bevel Gears |
| Differential | Obturation, four bevel gears |
| Differential Lock | Locking Pin Type |
| Final Transmissions | Planetary reduction gear |
| Tire Front/Rear | 16.9-28/20.8-38 |
| Steering Gear | Hydraulic steering |
| Brake | Oil immersed multi-plate disc |
| Lifting Capacity (KN) | ≥70 |
| 3-Point Suspension | Category: III |
| P.T.O. Shaft (rpm) | 540/1000 |
| Spline Size | 8-Ø48 and 21-Ø48 Rectangular Spline |
| Mi. Operation Mass (KG) | 7400 |
